Spectrum analyzer, transfer function and phase display.

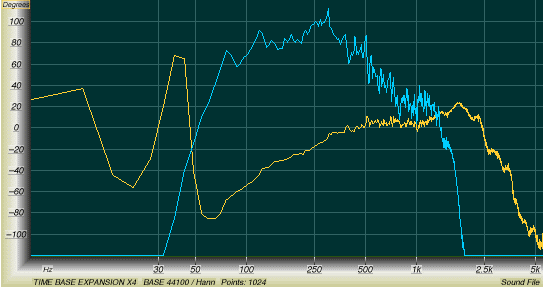

Near field frequency and phase (orange curve) response of loudspeaker woofer. Phase peak at ca. 40 Hz is partly due to a peculiarity in the design of the loudspeaker.

Related screen shot:

Spectrum analyzer, transfer function display (axis calibrated to dB instead of degrees).

Spectrum analyzer, transfer function and phase display.


Near field frequency and phase (orange curve) response of loudspeaker woofer. Phase peak at ca. 40 Hz is partly due to a peculiarity in the design of the loudspeaker.
