Mac the Scope Screen Shot

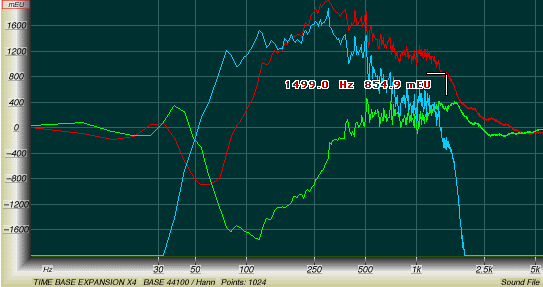

Spectrum analyzer; transfer function display plus real and imaginary parts of complex transfer function.
Near field frequency response, plus real (red) and imaginary (green) parts of complex transfer function of loudspeaker woofer. Cursor positioned on real part to show magnitude (0.8549 engineering units) and frequency.
