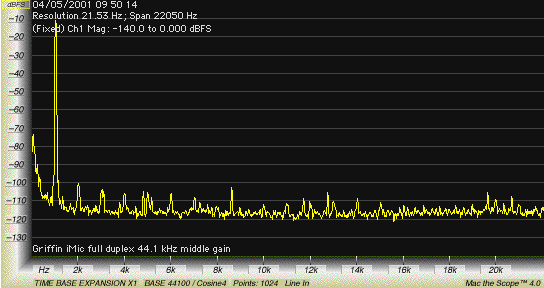

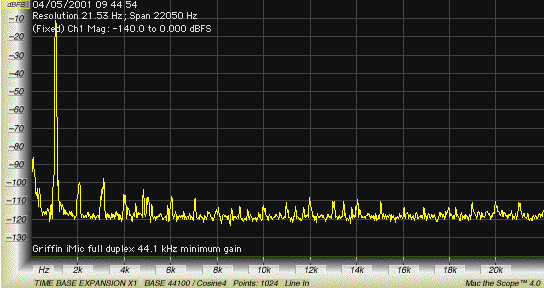

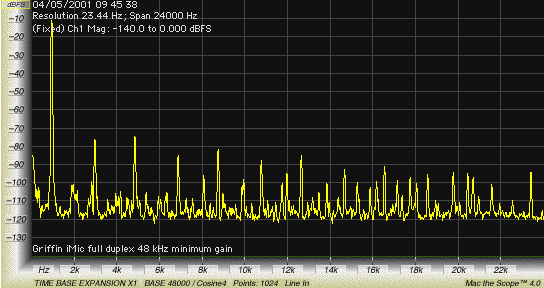

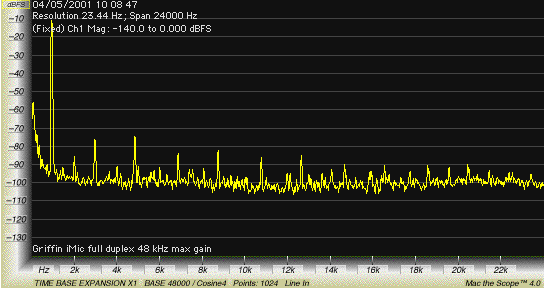

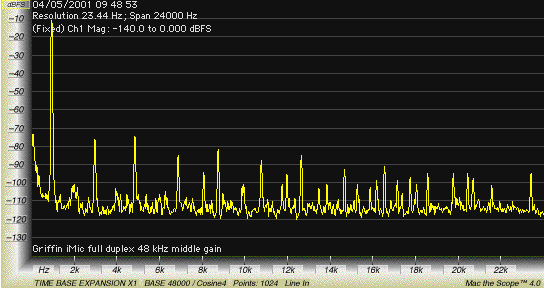

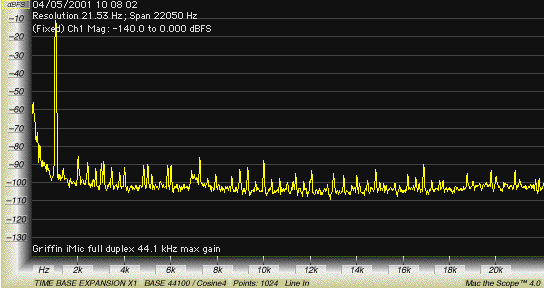

Measurement conditions:

Channel 1 is shown, and is representative of Channel 2.

iMic Firmware 1.0 Update

Input level (gain) adjusted with iMic Control 1.0

Note: the distortion measurements may be replicated with the free, demo version of Mac the Scope (the session timeout limit provides ample time for making the measurement).

Back to measurement index page for this product

Here are links to some other measurements.

Here is a procedure for making the distortion measurement.
