Seta - Balanced Direct Coupled Ultra Wide Bandwidth Phono Preamplifiers

Seta

Technical Measurements

Seta phonograph preamplifier measurements


Harmonic Distortion, Seta Model L at 40 dB Gain, 1 kHz / 20 kHz
Click images to enlarge

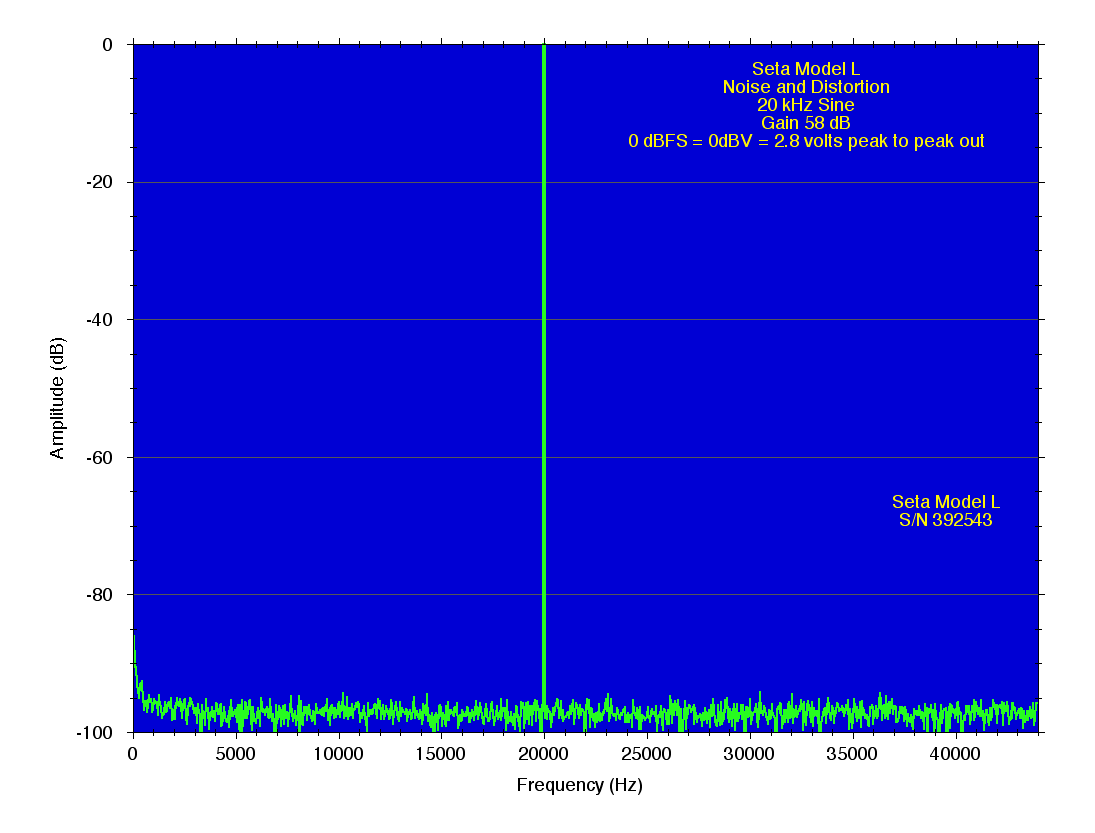

Harmonic Distortion, Seta Model L at 58 dB Gain, 1 kHz / 20 kHz
Click images to enlarge

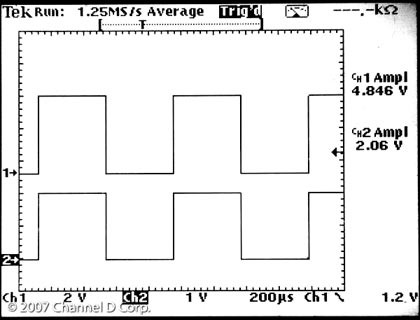

1.2 kHz square wave reproduction, Seta Model L Top trace: input signal, 4.846 mV (through 1000:1 attenuator) Bottom trace: output, 52 dB gain (single ended), 600 ohm load

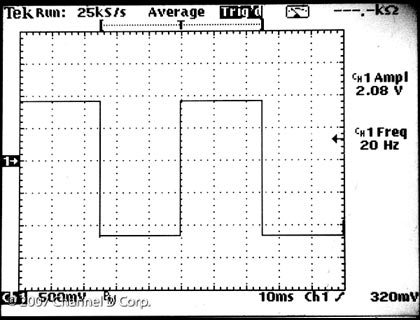

20 Hz square wave reproduction, 600 ohm load

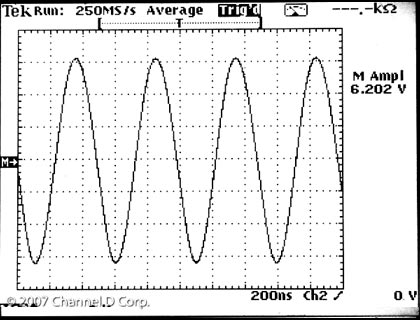

2 MHz sine wave reproduction, Seta Model L
58 dB gain, 600 ohm load
Over 6 volts clean peak to peak output, even at this extremely high frequency


Seta Model H

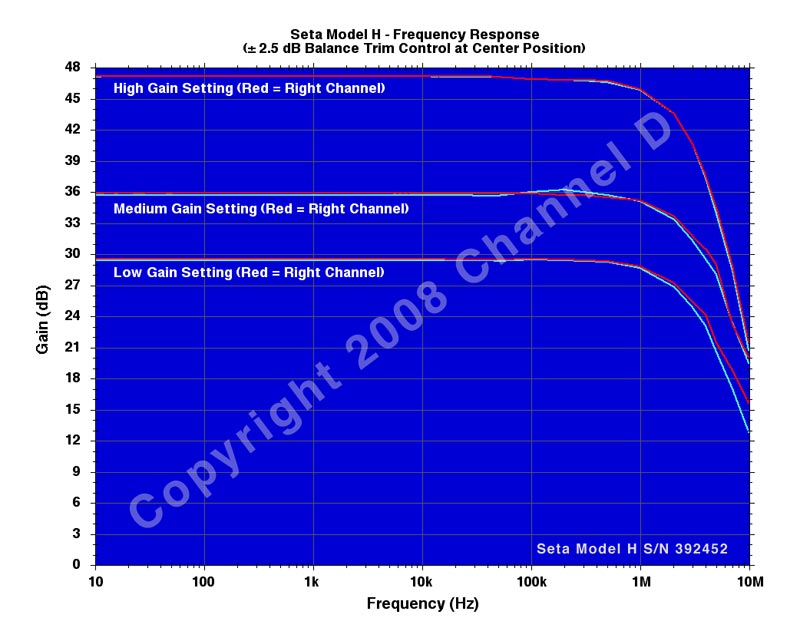

Frequency Response vs. Gain
Click image to enlarge

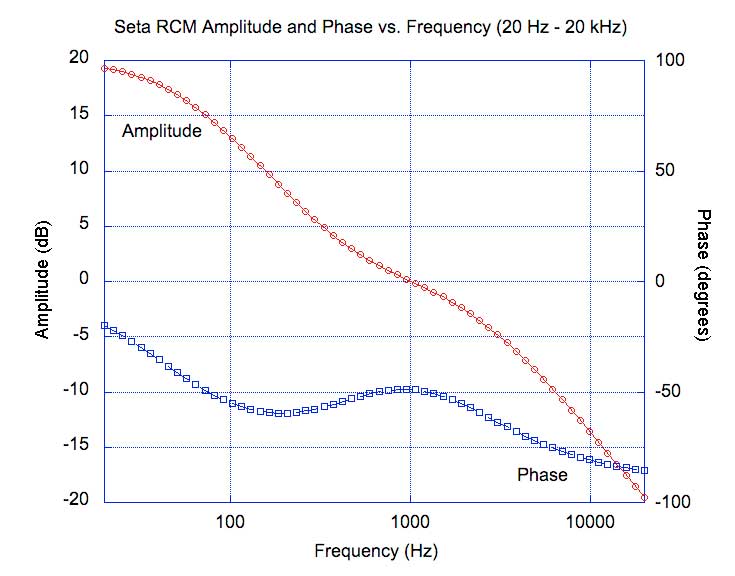

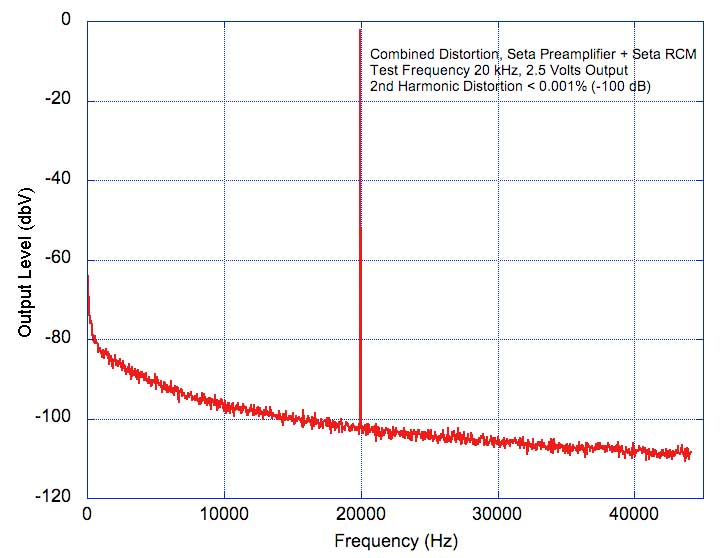

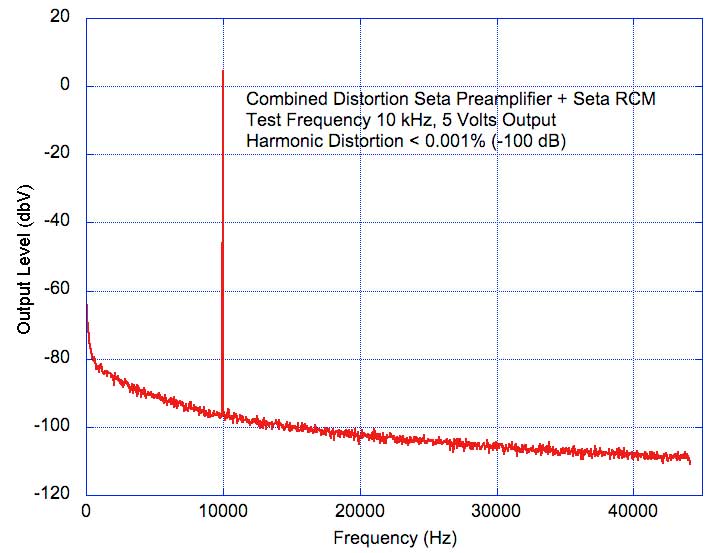

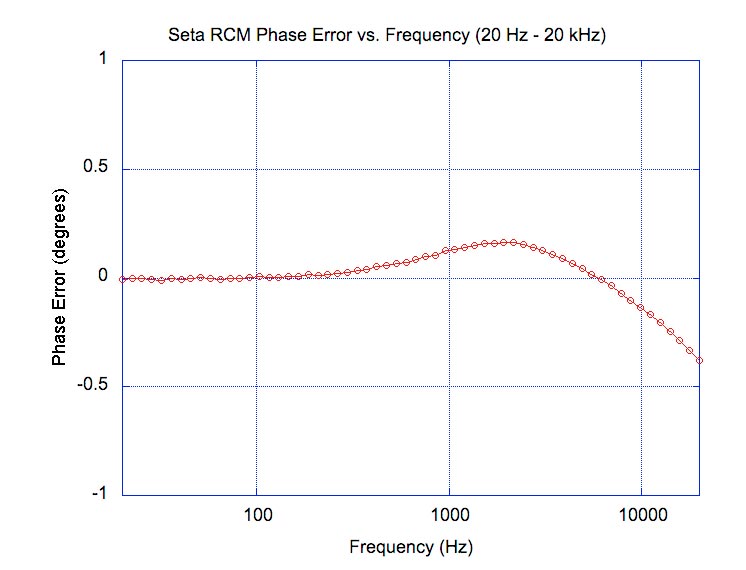

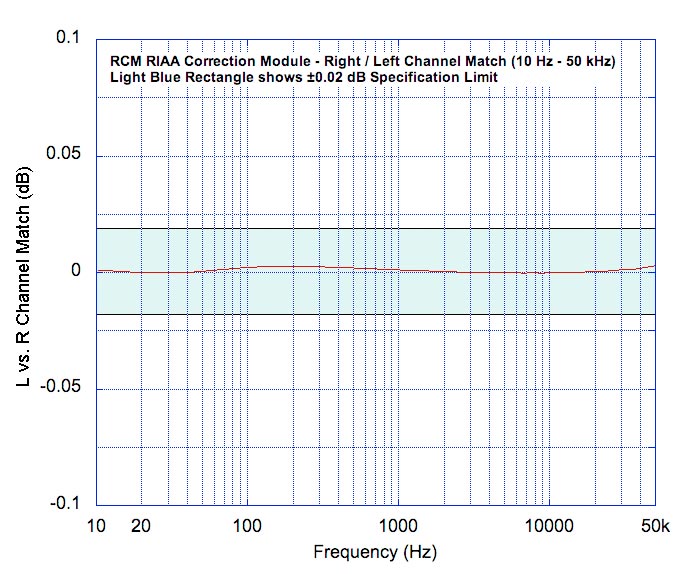

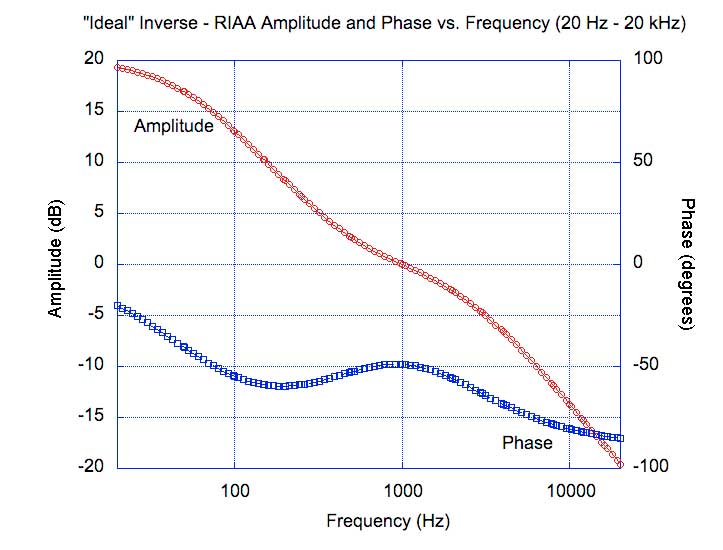

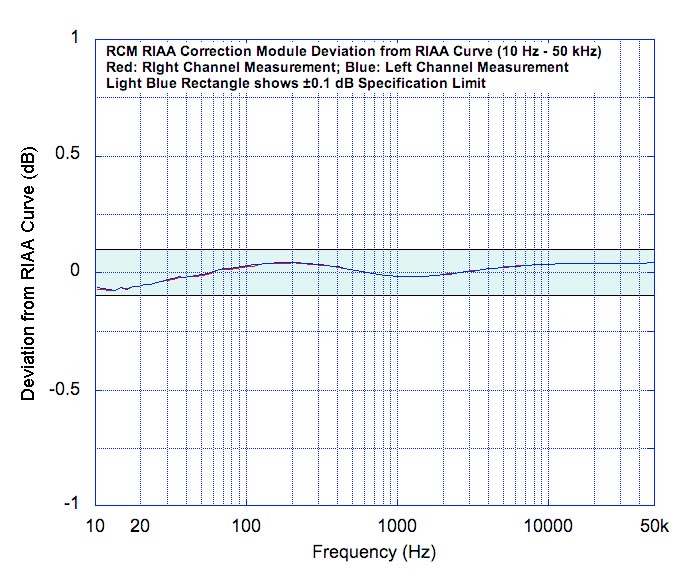

Seta RCM (RIAA Correction Module) Measurements
